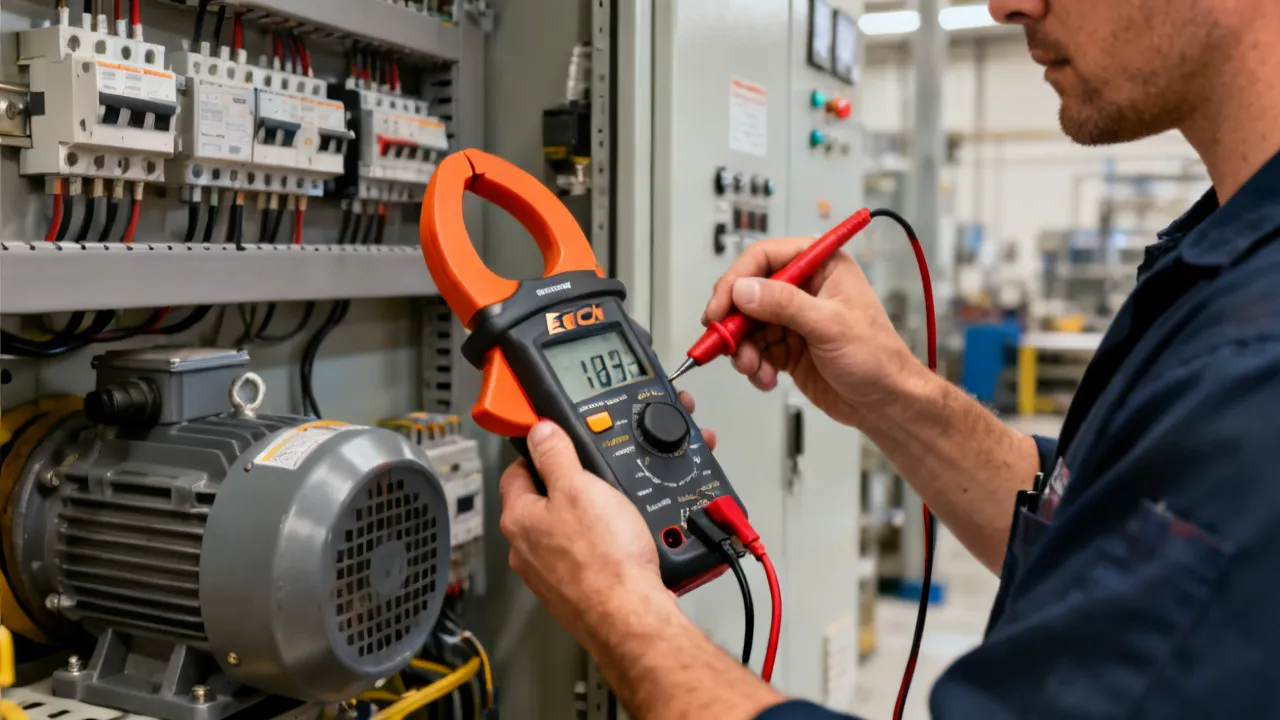

This guide explains how to identify, select, and use the Extech EX800 series of clamp meters for electrical maintenance, troubleshooting, and verification. Because EX800 refers to a product family rather than one universal configuration, buyers should confirm the exact model, measurement functions, jaw capacity, safety category, and operating limits before purchase. The article also covers measurement technique, safety planning, maintenance, purchasing considerations, and common user questions.
The Extech EX800 is commonly used to describe a family of clamp meters designed for electrical measurement without requiring the technician to disconnect a conductor from the circuit. In practical terms, the instrument combines a current clamp with conventional multimeter functions such as voltage, resistance, continuity, and, depending on the specific model, additional capabilities such as temperature measurement, frequency measurement, capacitance testing, or inrush-current analysis.
The very important point for a prospective buyer is that “Extech EX800” does not necessarily identify one single meter with one fixed specification. The EX800 designation is associated with a range of related models, and the functions can differ between model numbers. A professional purchase decision should therefore be based on the complete model designation printed on the instrument, packaging, manual, or product data sheet.
From an industry perspective, this distinction is more than a catalog detail. Electrical technicians often assume that instruments in the same product family share identical measurement ranges and safety functions. That assumption can lead to an unsuitable purchase or an incorrect field procedure. Before using an Extech EX800 meter, verify the model-specific measurement category, maximum current rating, jaw opening, display behavior, accessory requirements, and environmental limitations.
The central advantage of a clamp meter is its ability to measure current around a single conductor. A conventional multimeter generally measures current by being connected in series with a circuit, which can require circuit interruption and creates additional risk if the connection is made incorrectly. A clamp meter, when used within its rated limits, allows the technician to assess current flow while preserving circuit continuity.
That convenience does not remove the need for electrical safety. A clamp meter is still a test instrument connected to, or positioned near, potentially energized conductors. Proper personal protective equipment, an appropriate measurement category, insulated accessories, sound test leads, and a disciplined test sequence remain essential.
The capabilities of an Extech EX800-series instrument depend on the exact model, but the family is generally associated with professional or advanced general-purpose clamp-meter applications. Common functions may include:
These features make the series relevant to building maintenance, heating and cooling equipment, motor diagnostics, electrical installation work, industrial service, and general facilities management. The instrument can help answer practical questions such as whether a motor is drawing current, whether phases are reasonably balanced, whether a control transformer is receiving voltage, or whether a circuit is energized.
However, a clamp meter should not be treated as a complete diagnostic system. It measures electrical quantities at a particular point and time. It does not automatically identify the reason for an abnormal reading. A high current may result from mechanical overload, low voltage, incorrect wiring, a failing bearing, a shorted winding, or a temporary starting condition. Similarly, a low current reading may indicate light load, an open circuit, a disconnected conductor, a failed component, or a measurement taken around the wrong conductor.
The instrument is most valuable when it is used as part of a broader troubleshooting process. A current reading becomes more useful when it is compared with equipment nameplate data, supply voltage, operating temperature, process conditions, and earlier measurements. For example, the current drawn by a pump should be considered alongside flow restrictions, valve position, pressure, and motor condition. Electrical measurements are evidence, not automatic diagnoses.
When someone searches for an Extech EX800, the intended product may be a particular model within the family. The suffix can affect the instrument’s current type, maximum range, temperature function, inrush function, jaw dimensions, display resolution, or other operating characteristics. The correct approach is to record the full model number before comparing prices or planning a test.
Several identification checks are useful:
An experienced technician will also verify whether the listed specification applies to the entire range or only a limited portion of it. Accuracy can vary with current magnitude, conductor position, frequency, temperature, battery condition, and the presence of nearby magnetic fields. A headline range is not the same as guaranteed accuracy under every field condition.
Model identification is especially important when buying a used instrument. Older meters may have worn labels, missing accessories, outdated calibration records, or a specification that differs from current product listings. The appearance of two meters may be nearly identical even though their internal measurement functions are different. If the model marking is unclear, the serial label and original documentation should be examined before the meter is used on energized equipment.
The clamp jaw detects the magnetic field produced by current flowing through a conductor. To obtain a meaningful reading, the jaw must normally surround one conductor rather than an entire multi-conductor cable containing opposing current paths. If the clamp surrounds both the outgoing and returning conductors of a single-phase circuit, their magnetic fields may largely cancel and the display can show a very small value even though the circuit is carrying substantial current.
This is one of the most common causes of an apparently incorrect clamp-meter reading. The technician should identify the individual conductor, open the jaw, place the conductor centrally within the jaw, close the jaw completely, and then observe the stable reading. The conductor should not be forced against the jaw or placed in a way that prevents full closure.
For three-phase systems, the measurement objective must be defined before testing. Measuring one phase conductor can show the current in that phase. Measuring a cable assembly containing all phases may produce a net magnetic result rather than the current in one phase. The method must match the diagnostic question.
The clamp should also be positioned so that nearby energized conductors have as little influence as practical. In a crowded panel, magnetic fields from adjacent circuits can affect a low-level reading. The technician should not rearrange or separate conductors while energized unless that procedure is specifically authorized and safe. If access is poor, the correct response may be to isolate the equipment, use an approved test point, or select a different instrument and method.
AC clamp measurement is based on the alternating magnetic field around the conductor. DC clamp measurement, where supported, requires a sensor capable of detecting a steady magnetic field. DC readings can be affected by sensor offset and residual magnetism, which is why some instruments provide a zero function or a procedure for removing unwanted offset.
If a model offers DC current measurement, the technician should follow the manual’s zeroing procedure before taking a critical reading. A small offset may be insignificant during a high-current motor test but important when checking a low-current control circuit. Repositioning the clamp can also change the reading slightly, so repeatability should be assessed when accuracy matters.
Polarity may also matter during DC measurements. Depending on the model, placing the clamp in one direction can produce a positive reading while reversing its orientation can produce a negative reading. This does not necessarily indicate a fault; it may simply show the direction of electron flow or conventional current relative to the sensor. The manual should be consulted for the correct interpretation.
Voltage measurements are performed with the test leads rather than the clamp jaw. Before connecting the leads, select the correct function and inspect the lead insulation. Insert the common lead into the appropriate terminal and connect the other lead to the voltage terminal specified by the instrument. When testing an energized circuit, place the common probe first where the procedure allows, then the live probe, and remove the live probe before the common probe at the end of the measurement.
The voltage range must be compatible with the expected circuit. If the meter supports automatic ranging, the technician should still understand the selected function and observe the display for signs of overload. A changing or unstable reading may reflect the circuit itself, electromagnetic interference, poor probe contact, or a measurement setup that is not suited to the application.
Voltage should be measured between clearly identified points. A line-to-line reading, line-to-neutral reading, and line-to-ground reading answer different questions. In a three-phase system, recording only one voltage relationship may conceal a supply problem. If a motor is suspected of having an electrical issue, phase-to-phase voltage and phase current should be documented using a consistent sequence.
Resistance and continuity measurements should be made on a de-energized circuit. The instrument injects a small test signal to evaluate the circuit, and the presence of external voltage can damage the meter or produce a misleading result. Capacitors should also be discharged through an approved procedure before resistance or continuity testing.
A continuity beep indicates that the measured resistance is below the instrument’s programmed threshold; it does not prove that a circuit can safely carry its intended load. A conductor may pass a low-current continuity test yet fail under operating current because of corrosion, a loose terminal, a damaged crimp, or excessive resistance at a connection.
For low-resistance connections, the resistance of the test leads and probe contacts can become significant. Pressing the probes firmly and consistently helps, but it does not turn a general-purpose meter into a specialized milliohm tester. If the test involves protective bonding, motor windings, or very low-resistance connections, the instrument’s resolution and accuracy should be checked against the task requirements.
An Extech EX800-series clamp meter can be useful for comparing phase currents on motors and other three-phase equipment. The technician should record the operating condition, supply voltage, load state, and current on each phase. A comparison is more useful when the motor is operating under a consistent load rather than during startup or a rapidly changing process.
Current imbalance should not be interpreted in isolation. It may be associated with supply-voltage imbalance, unequal loading, loose connections, winding problems, mechanical resistance, or instrumentation error. A responsible troubleshooting sequence compares current readings with voltage measurements, equipment nameplate information, operating temperature, and the manufacturer’s service limits.
In single-phase equipment, the clamp can help identify running current and switching behavior. The reading should be compared with the equipment documentation rather than with a generalized rule. Refrigeration compressors, pumps, fans, and heating appliances can have very different normal operating patterns.
When taking motor readings, the technician should note whether the motor is unloaded, partially loaded, or operating at its normal process demand. A motor running with a disconnected belt may show a normal-looking current even though the machine will overload when connected. Conversely, a motor serving a temporarily heavy process may draw more current without being defective. Context determines whether a value is concerning.
Some EX800-series models include a function designed to capture or display inrush current. Inrush is the temporary current drawn when equipment is energized. Motors, transformers, capacitors, power supplies, and certain lighting systems can produce a starting current that is considerably different from steady-state current.
Inrush measurement requires careful timing and a clear understanding of what the instrument records. The display may capture a peak over a defined window rather than continuously present a detailed waveform. The value is very useful when the same measurement procedure is repeated under comparable conditions.
Inrush data can help evaluate nuisance breaker trips, unexpected voltage drop, starting difficulty, or whether a replacement component has a different starting profile. It should not, by itself, be used to approve a protective-device change. Protective coordination requires consideration of conductor ampacity, fault current, equipment ratings, code requirements, and the manufacturer’s instructions.
To obtain repeatable results, the clamp should be in position before the equipment is energized, if the work method allows this safely. The technician should avoid placing the instrument around multiple conductors and should ensure that the selected inrush mode is active before the starting event. Repeating the test can help distinguish a consistent equipment characteristic from an accidental trigger or an abnormal one-time event.
Facilities technicians often use clamp meters when inspecting air-handling units, pumps, compressors, electric heaters, and fan motors. The instrument can support checks of running current, control voltage, relay operation, and continuity on isolated components.
Temperature-capable models may also assist with basic component checks when used with the correct probe and installation method. Electrical current and surface temperature are related only indirectly, so neither should be treated as a complete substitute for the other. A warm terminal may result from high current, poor contact resistance, insufficient torque, ambient temperature, or inadequate ventilation.
In HVAC work, a compressor’s measured current should be compared with suction and discharge conditions, ambient temperature, refrigerant operating conditions, and the equipment nameplate. A fan motor’s current should be considered with airflow restrictions, filter condition, damper position, and belt tension. The clamp meter contributes one part of the assessment but cannot determine refrigerant charge, airflow, or mechanical condition on its own.
At distribution boards and control panels, a clamp meter can assist with load surveys and troubleshooting. Before opening or approaching a panel, the technician should follow the site’s energized-work policy and determine whether the measurement can be performed without exposing personnel to unnecessary hazards.
Load surveys should document the circuit identification, phase, approximate time, operating condition, measured current, voltage where relevant, and any unusual observations. A single reading may be useful, but a series of readings across operating cycles can reveal patterns that a snapshot cannot show.
For building loads, measurements taken during peak occupancy may differ significantly from readings taken during an empty period. Heating, cooling, elevators, pumps, data equipment, and cooking appliances can all create changing demand. A planned survey should identify the reason for measurement and the period over which the data will be collected.
Safety is the highest priority when working with any clamp meter. The following requirements should be treated as a minimum framework rather than a replacement for local regulations, employer procedures, or formal electrical training.
The measurement category deserves particular attention. Categories such as CAT II, CAT III, and CAT IV describe the type of transient environment for which measuring equipment is designed. The appropriate category depends on where the instrument is used, such as receptacle circuits, fixed building wiring, distribution equipment, or the service entrance. The category marking must be read together with the voltage rating and the manufacturer’s safety instructions.
It is also important to distinguish a product’s measurement-category marking from a general statement that it is “professional.” A professional appearance, large display, or high current range does not establish suitability for a particular installation.
Personal protective equipment should be selected based on the hazard assessment rather than habit. Depending on the task, this may include safety glasses, voltage-rated gloves, arc-rated clothing, hearing protection, and electrically rated footwear. PPE does not make unsafe work acceptable; it is one layer within a larger system of isolation, approach boundaries, training, equipment selection, and supervision.
The following workflow is suitable as a general educational outline. The exact procedure in the model manual and the applicable workplace safety rules take precedence.
A disciplined sequence reduces both measurement error and exposure time. It also creates a useful record for maintenance teams, especially when an intermittent fault cannot be reproduced during one visit.
When taking lead-based voltage measurements in addition to a clamp reading, the technician should avoid unnecessary movement between test points. The safest practical arrangement is to plan the sequence in advance, use appropriately rated accessories, and keep the meter and body positioned so that a slip is less likely to bring the user into contact with adjacent parts. If the panel layout makes this impossible, the job should be reassessed rather than improvised.
Clamp-meter accuracy is influenced by more than the number shown in the product description. The conductor’s position inside the jaw, nearby magnetic fields, the current waveform, temperature, range selection, and the condition of the instrument can all affect the result.
Centering the conductor is a simple but valuable practice. On small conductors, moving the wire within the jaw can produce different readings because the sensor response is not perfectly uniform across the opening. Repeat the measurement with the conductor in a consistent central position when comparing phases or equipment.
Nearby conductors can also influence the magnetic field detected by the clamp. If the reading seems implausible, reposition the meter where safe, separate the conductor from adjacent circuits if the installation permits, and compare the result with another approved measurement method.
Non-sinusoidal loads, variable-frequency drives, switching power supplies, and electronic controls may require a meter designed for the waveform involved. A general-purpose clamp meter may not provide the same interpretation as a true-RMS instrument under distorted waveforms. The product manual should be consulted to determine the model’s measurement method and limitations.
Low-current measurements deserve special care. A high-capacity clamp designed for large conductors may have limited resolution at very low current. If the reading is close to the instrument’s lower operating range, repeatability and uncertainty should be considered. In some controlled applications, looping a conductor through the clamp more than once can increase the displayed value, but that technique changes the calculation and must be applied exactly according to the number of turns.
For example, if a conductor is passed through the clamp twice, the meter detects approximately twice the magnetic effect of a single pass. The actual current is then calculated by dividing the displayed value by the number of turns. This technique should only be used when the conductor arrangement is secure, the measurement is safe, and the manual or established procedure permits it. It is not appropriate if the additional looping creates strain, compromises insulation, or brings conductors too close to one another.
Although the EX800 family may contain different layouts, clamp meters commonly use a rotary selector, function buttons, input terminals, a display, and a clamp trigger. Users should identify the meaning of symbols before beginning a live measurement.
When the display is unstable, the cause should be investigated rather than ignored. Electrical loads may genuinely fluctuate, but unstable readings can also result from weak batteries, poor probe contact, electromagnetic interference, a loose jaw, an unsuitable range, or a conductor that is not fully enclosed.
The hold function is helpful when a display cannot be viewed directly, but it introduces a possible interpretation error. A held reading may represent an earlier condition rather than the present circuit state. Before relying on a held value, the technician should verify that the hold indicator is understood and that the measurement was taken under the intended operating condition.
Routine care helps preserve both performance and safety. After use, wipe the housing with a suitable soft cloth. Avoid solvents or cleaning products that can damage the plastics, labels, or insulation. Keep the jaw faces clean and free from debris because contamination can interfere with full closure.
Inspect test leads regularly, especially near the probe tips and plugs. Flexing, heat, oil, and mechanical abrasion can degrade insulation. If a lead shows exposed conductor or other damage, remove it from service rather than attempting an improvised repair.
Store the instrument in a dry location within the environmental limits specified by the manufacturer. Extreme temperatures, condensation, dust, and corrosive atmospheres can affect the housing, battery contacts, display, and internal circuitry. If the meter has been moved from a cold environment into a warm one, allow condensation to dissipate before operating it in a critical application.
Battery maintenance should follow the manual. Remove batteries if the instrument will be stored for an extended period and the manufacturer recommends doing so. A leaking battery can damage internal components and compromise reliability.
Calibration is another important consideration. The appropriate calibration interval depends on use frequency, handling, required accuracy, workplace policy, and the consequences of an incorrect result. A meter used daily in industrial maintenance may require a more formal verification program than one used occasionally for noncritical checks. Calibration should be performed by a competent service provider using traceable equipment where traceability is required.
Before each use, a functional check can identify obvious problems. This may include checking the display, confirming that the clamp opens and closes smoothly, testing voltage on a known approved source, and confirming that the continuity function responds on a known de-energized circuit. Such checks do not prove that every range is accurate, but they can reveal a dead battery, damaged lead, failed display segment, or malfunctioning selector.
Selection should begin with the work rather than with the product name. A technician who only needs routine AC current checks may not require every advanced function. Another user working on motors, control systems, or mixed electrical equipment may benefit from a model that supports DC current, inrush analysis, temperature, or more detailed measurement modes.
| Selection factor | Why it matters | Questions to verify |
|---|---|---|
| Current type | Determines whether the clamp can measure AC only or both AC and DC current. | Does the intended application include batteries, control systems, solar equipment, or DC drives? |
| Maximum current | Defines the upper operating limit and affects suitability for large loads. | What is the expected normal and starting current, and is adequate margin available? |
| Jaw opening | Determines whether the clamp can fit around the conductor or cable. | Can the jaw close fully around the actual conductor without force? |
| Inrush capability | Supports investigation of motor, transformer, and power-supply startup behavior. | Is startup current part of the troubleshooting requirement? |
| True-RMS performance | Can improve interpretation of certain nonsinusoidal waveforms when specified by the manufacturer. | Will the meter be used on electronic loads or variable-speed equipment? |
| Temperature function | May support basic thermal checks with the correct probe. | Is temperature measurement needed, and is the probe included in the package? |
| Safety rating | Determines whether the instrument is appropriate for the installation category. | Does the marking match the electrical environment and workplace requirements? |
| Display and controls | Affects readability in panels, plant rooms, outdoor locations, and low-light areas. | Is the display easy to read from the intended working position? |
| Documentation and service | Supports correct use, calibration, repair, and good ownership. | Are the manual, replacement leads, batteries, and service arrangements available? |
The table is a planning aid, not a substitute for the specification of a particular model. Buyers should compare the exact model number and the official documentation supplied with that model.
Ergonomics should also be considered. A meter that is technically capable but difficult to hold, read, or operate with protective gloves may be a poor choice for field work. The location of the clamp trigger, size of the display, selector feel, backlight availability, and compatibility with a tool bag can affect both efficiency and safety. If possible, users should handle a representative instrument before committing to a large purchase.
Price is only one part of the cost of ownership. A lower purchase price may not represent better value if the instrument lacks a required function, uses unsuitable accessories, or cannot be supported through calibration and replacement parts. Conversely, a more capable model may be unnecessary if the work involves only basic measurements.
When reviewing an Extech EX800 listing, check whether the price refers to the meter alone or to a complete kit. Package contents can include test leads, a thermocouple, batteries, a case, an adapter, or other accessories. Confirm the condition as well: new, manufacturer-refurbished, used, or open-box products may have different warranty and inspection considerations.
Supplier credibility is also relevant. A reputable supplier should provide a clear model number, readable photographs or product details, documentation, warranty terms, delivery conditions, and a procedure for resolving defects. Product pages that use only a broad family name without identifying the suffix should be treated cautiously until the exact configuration is confirmed.
For organizational purchasing, retain the invoice, serial number, calibration record, and supplied manual. These documents support asset tracking and may be required for audits or maintenance procedures. If the meter will be used for regulated or safety-critical work, confirm that the organization’s calibration and verification requirements are satisfied before placing it into service.
Replacement accessories should be considered as part of the purchase. Test leads are consumable safety components, and a meter becomes difficult to use if suitable replacements are unavailable. Verify the connector style, probe insulation, fuse requirements, carrying case, and battery type. Accessories from another manufacturer should not automatically be assumed to have the same rating as the original components.
This produces a net magnetic reading rather than the current in one conductor. It is especially common when the technician clamps around an entire flexible cable. The remedy is to access and measure the individual conductor where safe and permitted.
Resistance mode is intended for de-energized circuits. Applying external voltage can damage the meter and expose the user to unnecessary risk.
A motor may draw a brief startup current that is not representative of its running current. If a technician records only the first displayed value or only the stabilized value, the diagnostic conclusion may be incomplete. The test objective should determine whether startup behavior must be captured.
A stable display can still be wrong if the wrong conductor, range, current type, or function has been selected. Verification requires checking the setup, expected circuit behavior, and related measurements.
Damaged leads can create shock hazards and false readings. Lead inspection should be part of every pre-use check, not an occasional response to a visible problem.
A conductor that physically fits may still be difficult to measure accurately if the jaw cannot close fully or if the conductor arrangement creates excessive external magnetic influence. Physical fit and measurement suitability are separate questions.
A conductor can have voltage present while carrying little or no load current. Conversely, current may be present in a circuit whose voltage is abnormal or interrupted at another point. Clamp measurements and voltage measurements answer different questions and should not be substituted for one another.
Many electrical readings change with demand. A pump, heater, compressor, or motor may be normal at one point in its cycle and abnormal at another. The operating state should always be recorded with the measurement.
An expert does not ask only, “What number did the meter show?” The better questions are: Under what operating condition was the measurement taken? Was the instrument appropriate for the waveform and current type? Was the conductor positioned correctly? Does the result agree with the equipment nameplate, voltage measurement, process load, temperature, and historical readings?
For example, a motor current that is higher than expected may suggest overloading, but the conclusion should be tested against supply voltage and mechanical conditions. If voltage is low at the motor terminals, current may rise under a constant-load condition. If the current is high on one phase only, connections, supply imbalance, and motor winding conditions may need investigation. If all phases are high and balanced, the mechanical load or operating point may be the more relevant direction.
Trend data is often more valuable than a single reading. Recording current at different production loads, times of day, or stages of a machine cycle can reveal deterioration. The Extech EX800 can support this process, but the quality of the record depends on consistent technique and accurate equipment identification.
For maintenance teams, a useful report should include the instrument model and serial number, date of measurement, calibration status, circuit identification, measurement mode, conductor or phase tested, operating condition, result, and interpretation. Photographs may be appropriate when they can be taken safely and without exposing sensitive information.
When a reading differs from expectations, repeat it before making a major decision. Check the clamp position, select the correct function, inspect the jaw closure, compare with another phase or parallel circuit, and verify the operating state. If the reading remains unusual, investigate related variables systematically rather than replacing components immediately.
A clamp meter measures electrical quantities; it does not replace insulation-resistance testing, power-quality analysis, thermal imaging, phase-sequence testing, earth-fault evaluation, or specialized motor analysis where those tools are required. Selecting the wrong instrument can create false confidence.
Leakage-current investigation may require a dedicated leakage clamp with sensitivity and jaw characteristics suited to the task. High-frequency current, rapidly changing waveforms, or very low current may also exceed the practical capability of a general clamp meter. The instrument manual should be consulted before applying the EX800 to specialized measurements.
Temperature measurement, where available, is similarly limited by probe contact, response time, and the difference between surface and internal temperature. A temperature reading can support a diagnosis but should be interpreted alongside electrical and mechanical evidence.
Finally, no meter can compensate for unsafe access. If the only way to reach a conductor exposes the technician to unacceptable risk, the correct decision is to change the work method, isolate the equipment, use an approved test point, or involve a qualified specialist.
Before an Extech EX800-series meter is placed into routine service, the following conditions should be satisfied:
These requirements are especially important when an instrument is shared among several teams. A meter can remain physically intact while its accessories, calibration status, or operating assumptions become unsuitable for a new application.
Training should include both instrument operation and electrical hazard recognition. A user may know how to select the amperage function but still fail to recognize that the installation requires a higher measurement category, an isolation procedure, or arc-flash controls. Competence includes knowing when not to take a measurement and when to request assistance.
Technical decisions should be based on the official documentation for the exact Extech model, including the user manual, data sheet, safety instructions, and calibration information. These documents establish the manufacturer’s stated ranges, accuracy conditions, environmental limits, and warnings.
Electrical safety practices should also be aligned with recognized standards and local regulations. Depending on the jurisdiction and application, relevant references may include IEC 61010 requirements for electrical measurement equipment, workplace electrical-safety regulations, national wiring rules, and employer-specific energized-work procedures. The appropriate standard depends on the task and location; a general article cannot replace a site risk assessment or legal advice.
Where accuracy is important, organizations may use calibration systems based on ISO/IEC 17025-accredited laboratories or an equivalent documented process. The laboratory’s scope should match the type of measurement being verified. A calibration certificate should not be assumed to validate every function or range of the meter unless those functions and ranges are explicitly covered.
Users should be cautious with unofficial online specifications that combine information from several related models. Product listings may copy a generic description, display an incorrect photograph, or omit limitations that appear in the manual. The official model-specific documentation is the strongest reference for safety and operating decisions.
Prioritize a configuration that is easy to operate, suitable for the building’s measurement category, and supported by clear documentation. Establish a repeatable inspection form for motors, pumps, air-handling equipment, and distribution circuits. Record normal baseline values so future changes can be identified.
Confirm whether the selected model supports the current types and startup measurements required by the equipment being serviced. Pair current observations with voltage, temperature, pressure, and manufacturer data. Avoid using current alone to condemn a compressor or motor.
Pay close attention to waveform compatibility, inrush behavior, jaw access, and the safety category. In control panels, plan the measurement point before opening the enclosure and use the site’s energized-work controls.
Learn the difference between clamp measurements and lead measurements before using the instrument on energized equipment. Practice the selector and terminal arrangement on de-energized training circuits, then work under appropriate supervision. The hold button, auto-ranging, and audible functions are conveniences, not safety systems.
Request the complete model number and documentation from the supplier. Compare the required functions, safety marking, accessory package, warranty, calibration options, and support arrangements rather than comparing family names alone.
Consider standardizing the meter model or at least standardizing the measurement procedure. Consistent instruments, forms, calibration intervals, and training make trend data more reliable. If several models are used, document their differences so technicians do not transfer assumptions from one instrument to another.
Extech EX800 generally refers to a family of Extech clamp meters rather than one universal instrument. Individual models within the family can differ in current type, ranges, functions, jaw size, and included accessories. The complete model suffix should be confirmed before purchase or use.
Yes, the clamp function is designed to measure current by surrounding a conductor, allowing the circuit to remain intact. The jaw should normally surround one conductor only. The instrument must still be used within its ratings and with appropriate electrical safety controls.
Some models in the EX800 family may support DC current measurement, while others may have different configurations. Check the exact model marking and official manual rather than assuming that every EX800-series instrument has the same capability.
The most common explanation is that the jaw surrounds multiple conductors whose magnetic fields cancel. Other possibilities include selecting the wrong current type, measuring below the instrument’s practical resolution, poor jaw closure, nearby magnetic fields, or an actual low-load condition.
No. Continuity and resistance functions should be used only on circuits that have been properly de-energized and made safe. External voltage can damage the meter and create a serious hazard.
Not necessarily. A high range provides capacity but may offer less useful resolution for small currents. The top configuration and range depend on the expected current, required accuracy, conductor size, waveform, and application.
An EX800-series clamp meter can include many multimeter functions, but it does not automatically replace specialized instruments. Insulation testing, power-quality analysis, sensitive leakage measurement, and other tasks may require dedicated equipment.
Inrush is a temporary startup value, not the same as steady-state current. Interpret it according to the instrument’s capture method and compare it with equipment documentation, protective-device behavior, supply voltage, and repeated tests under similar conditions.
There is no single interval suitable for every user. The interval should reflect frequency of use, environmental exposure, required accuracy, organizational policy, and the consequences of an incorrect result. Follow the manufacturer’s guidance and the organization’s calibration program.
Confirm the exact model, measurement functions, safety category, current range, jaw opening, accessories, condition, warranty, documentation, and supplier support. If calibration is required, verify whether a current calibration certificate is included and what functions it covers.
Only if the exact model is rated for those environmental conditions, and only within the manufacturer’s stated limits and site procedures. A general clamp-meter designation does not establish suitability for wet, explosive, corrosive, or exceptionally hot environments.
The sensor response may vary across the jaw opening, and nearby magnetic fields may affect the result. Centering the conductor and repeating the measurement consistently can improve comparison. If the variation is excessive, the application may require a more specialized instrument or a different test arrangement.
The Extech EX800 series can be a practical platform for current measurement, voltage verification, electrical troubleshooting, and maintenance documentation. Its strongest value lies in combining clamp-based current measurement with conventional test functions in a portable format. For many technicians, that makes routine checks faster and reduces the need to interrupt a circuit solely to measure current.
The quality of the result, however, depends on the complete process. Identify the exact model, match its ratings to the installation, inspect the instrument, select the correct function, clamp around the correct conductor, and interpret the reading in context. Do not use a broad product-family name as a substitute for a model-specific specification.
When selected for the actual workload and used within its limits, an Extech EX800 can support a structured maintenance program. When used casually or outside its safety and measurement capabilities, even a well-designed clamp meter can produce misleading results. The professional standard is therefore not simply owning the instrument; it is applying the right instrument, method, and safety procedure to each measurement.
For a prospective buyer, the best decision is the one that matches the meter to the work environment, expected electrical quantities, required accuracy, and available training. For an existing owner, the best practice is to verify the model, maintain the accessories, follow the manual, document results, and treat every energized measurement as a controlled electrical task. Used in that way, the Extech EX800 family can be a useful and durable addition to a technician’s diagnostic equipment.
